Aluminum plastic composite panel recycling machine

Aluminum plastic composite panel recycling machine

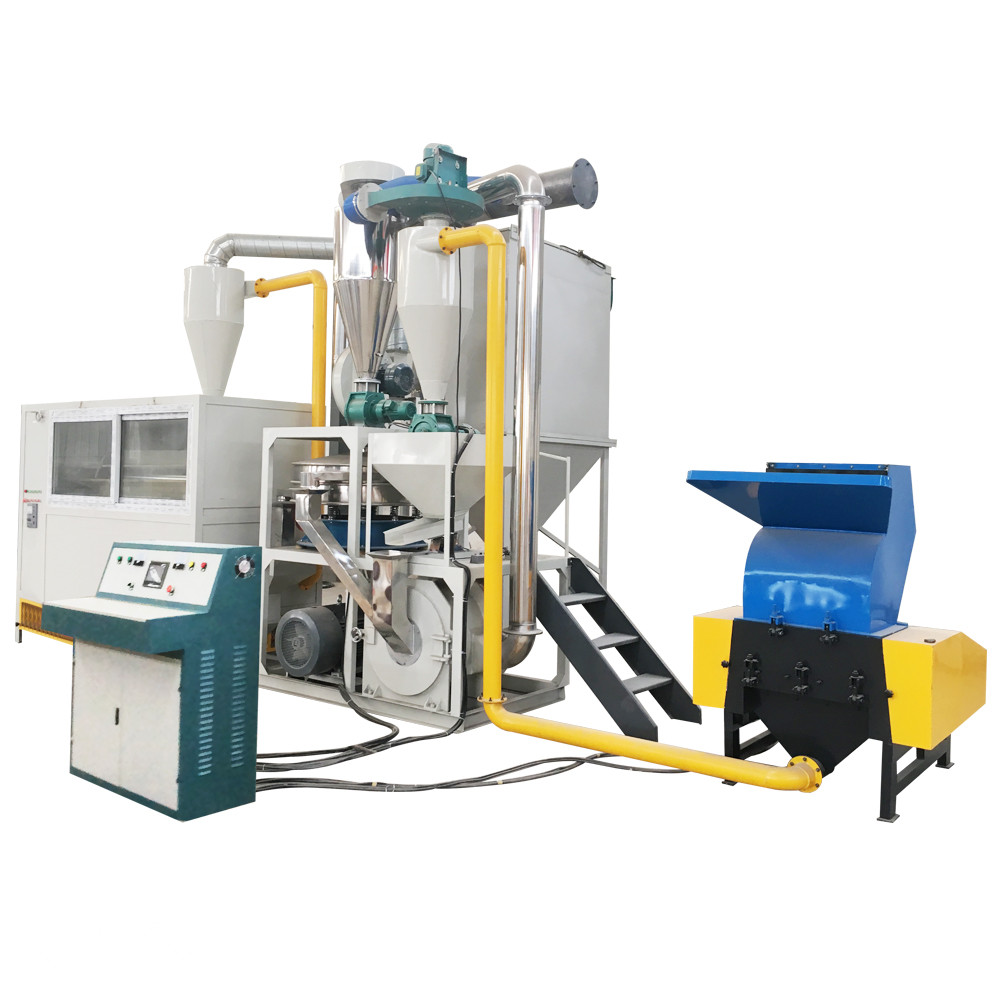

Aluminum plastic composite panel recycling machine is for processing waste aluminum plastic composite materials to separated aluminum and plastic.

Aluminum plastic composite panel recycling machine is for processing waste aluminum plastic composite materials to separated aluminum and plastic. Aluminum plastic composite panel recycling machine uses the PLC automation programming control

The highest purity of aluminum plastic sorting purity can reach more than 99.9%.

Scope of application

Mainly for waste materials of aluminum plastic composite panels, aluminum plastic ceilings, leftover bits and pieces of aluminum plastic decorative plates, aluminum plastic leftover bits and pieces in the production process of aluminum plastic plates, punching materials, sawdust and discarded materials of a large number of aluminum plastic composite panels in society, decompose and recover aluminum and PE/PVC plastics of substrates to achieve the purpose of the re-use of aluminum and plastics.

Structural feature:

1. The equipment uses the PLC automation programming control and man-machine interface touch screen.
2. Recovery rate of metals and plastics can reach up to more than 99%, and aluminum can directly cast aluminum ingots or make aerated aluminum pastes of steamed tiles and plastic particles.
3. Use the bag type or pulse type to remove dust in the production line to purity the working environment.
4. The automation control system simplifies the operation procedures and the entire assembly only needs 1 to 2 people.
5. Do not burn and soak with chemical solution, which is in line with requirements for environmental protection.

Technical parameter

Model Power
(kw)
Purity(%) Collection coefficient
(%)
Output
(kg/h)
 dimension
(mm)
Weight
(kg)
SY-C-300 58 ≥99% ≥99.5% 200-300 6500*3000*3800 4500
SY-C-500 106 400-500 7200*4500*3900 6500
SY-C-800 138 700-800 9500*8500*4200 8900
