PCB Circuit board recycling machine

PCB Circuit board recycling machine
  • PCB Circuit board recycling machine
  • PCB Circuit board recycling machine
  • PCB Circuit board recycling machine

Machine Function:

PCB Circuit board recycling machine is used to separate metals and non-metals from waste circuit boards, CCL,waste computer mother boards, waste cell phone motherboards, waste TV boards and PCB scrap etc.

PCB Circuit board recycling machine is low investment high profit project, environmental friendly project.

Product Video

Scope of feeding materials

All kinds of waste circuit boards, CCL, waste computer mother boards, waste cell phone motherboards, waste TV boards, PCB scrap, copper-clad laminate, and other household appliances.

PCB Recycling Machine

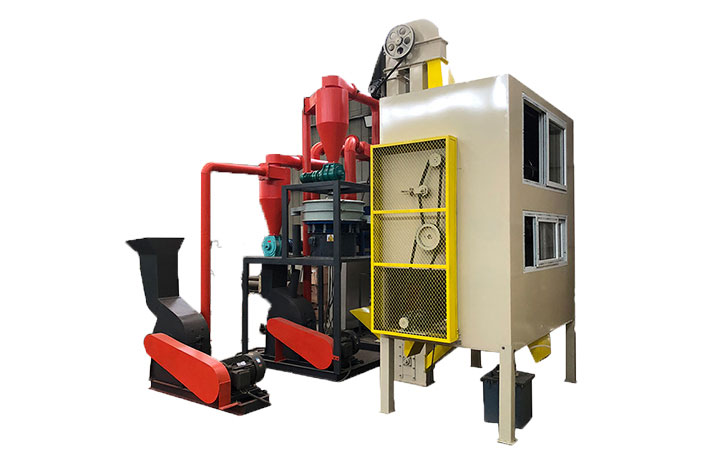

The E waste PCB circuit board recycling machine consists of shredding system, milling system, sorting system and dust collection system. It is efficient cost and fast returning of investment.

Final Product

The final products of PCB Circuit board recycling machine is mixed metal powder and resin powder. Also you can get second hand electronic components include Tin slags,IC chips,Capacitors,CPU/RAM etc.

WHY CHOOSE SURE ORIGIN GROUP

  • Good Quality & Design

    Research and design machines, according to different materials.
    SKD 11Blades & Thicker SS screen for long span life PLC control system for easy operation.

  • Factory Price

    two workshops
    self-design and manufacturing,
    cost efficient

  • Good Service

    Pre-sale: free trial running
    After-sale: Installation, Trial running,
    Operation training, 12 month warranty

  • Strong Technology Support

    Machine operation guidance
    Over 17 years working experience engineers.

PRODUCT FEATURES

1. PLC intelligent programming automatic control system for easier operation.

2. Compact structure, reasonable layout, stable performance, noise reduction treatment of the crushing equipment.

3. The circulating water cooling is used inside and outside the crushing chamber.

4. Environmental-friendly operation . the advanced pulse dust removal system effectively collects dust in the production process.

5.99% high purity,by gravity separation and high voltage electrostatic separator device ,to enlarge the commercial value for our clients.

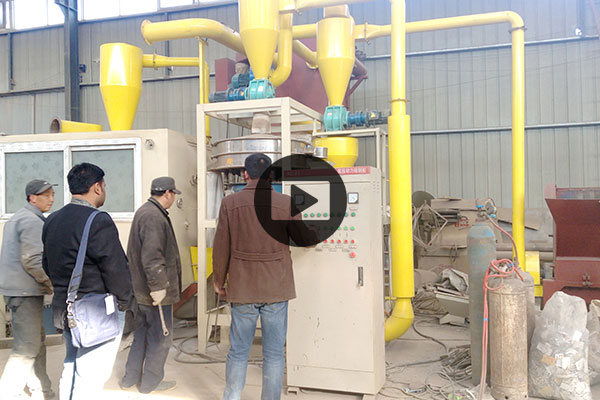

CUSTOMER WORKSITE

TECHNICAL PARAMETERS

Model Capacity (kg/h) Power (kw) Weight (kg) External dimension (mm)
SY-C-1000 150-200 45 4250 6000*7500*4200
SY-C-1500 200-300 68 6500 7000*8200*4500
SY-C-1800 300-500 110 8500 8000*11000*4800
SY-C-2000 1000-1200 198 12500 8200*16000*5250

NOTE:

1. The above machine are our standard specification, for turnkey project, or for different raw materials machine solutions, please contact us about your raw materials;

2. The machine voltage can be customized.
